Networking Accessories

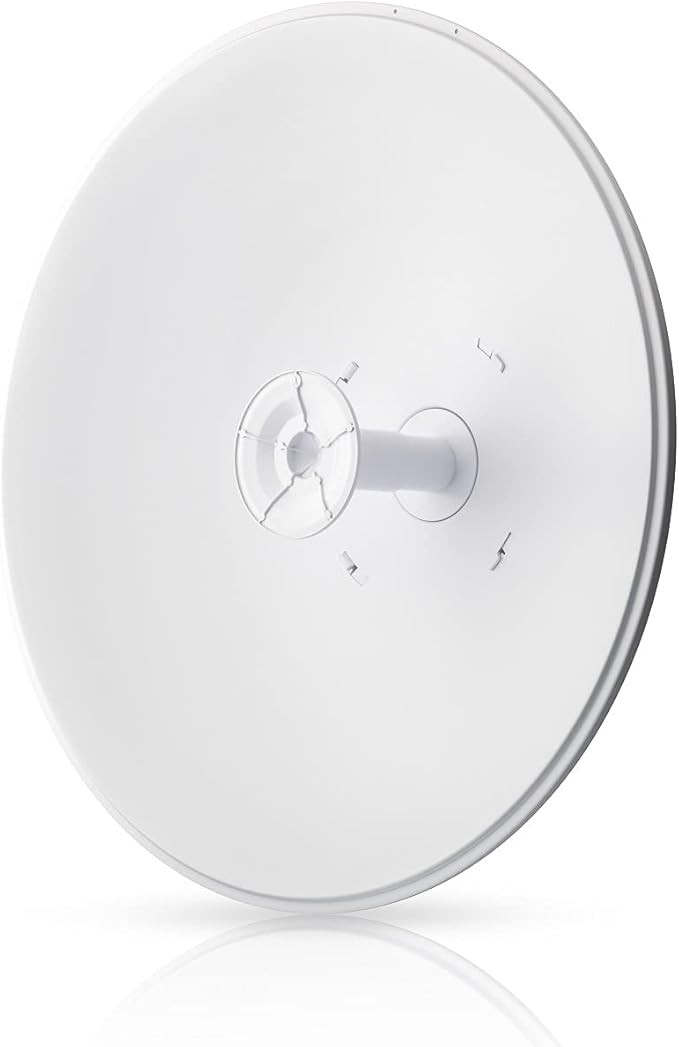

Ubiquiti AF-5G30-S45 airFiber X 5 GHz, 30 dBi, Slant 45
Brand: Ubiquiti
Model: AF-5G30-S45
5 GHz, 30 dBi antenna ideal for long range Point-to-Point (PtP) links.
5 GHz, 30 dBi antenna ideal for long range Point-to-Point (PtP) links.
| AF-5G30-S45 | |
|---|---|
| Product Dimensions | 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″) |
| Weight | With Mount: 7.4 kg (16.31 lb) |
| Frequency | 5.1 – 5.9 GHz |
| Gain | 30 dBi |
| Max. VSWR | 1.6:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 790 N @ 200 km/h (178 lbf @ 125 mph) |
| Polarization | Dual Linear |
| F/B Ratio | 30 dB |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included |
| NDAA Compliant | Yes |
